Automatic Control Rotary Kiln Furnace Recycling Strong Adaptability 200KW Rated Power
Brief Description:
Compared with vertical kilns or fluidized beds, rotary kilns have more advantages in processing large-particle materials, and the reaction process is easier to control, which is suitable for high-precision calcination needs.

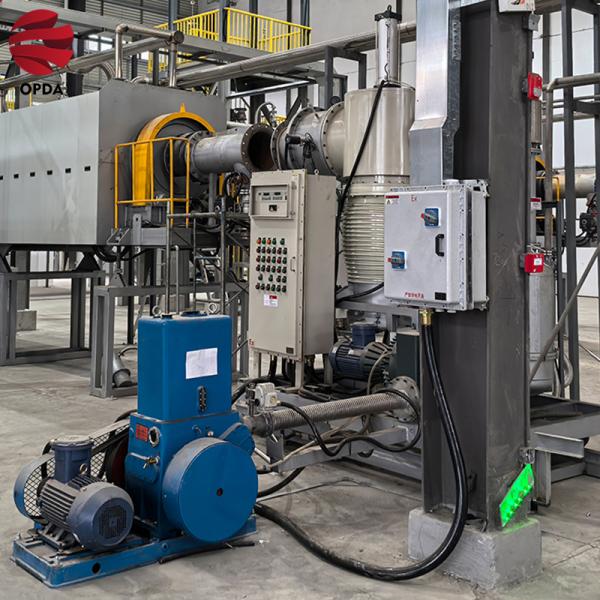

Product Image:
Product Parameters:
(1) Rated temperature: 1050℃
(2) Working temperature: 1000℃
(3) Rated power: 200KW
(4) Operating power: ~120KW
(5) Power supply: 380V
(6) Number of heating zones: 5 zones
(7) Furnace temperature stability: ≤±1℃
(8) Furnace temperature uniformity: ≤±5℃
(9) Common heating rate: 1-10℃/min (continuously adjustable)
(10) Furnace size (L×WXH): 5000×1000×1200mm (heating zone)
(11) Furnace tube size (DXL): 800 ×5000mm
(12) Furnace body dimensions (L×W×H): ~5600×1880×2000mm
(13) Equipment dimensions (L×W×H): ~7500×2180×2600mm
(14) Furnace tube speed: 1~5 rpm (continuously adjustable)
(15) Furnace body inclination: -2~14° adjustable
Industry Applications and Advantages:
The furnace tube volume is about 2500 liters, and the effective furnace space is 375 liters. It can be used for powder particle calcination, coating, carbonization, etc.

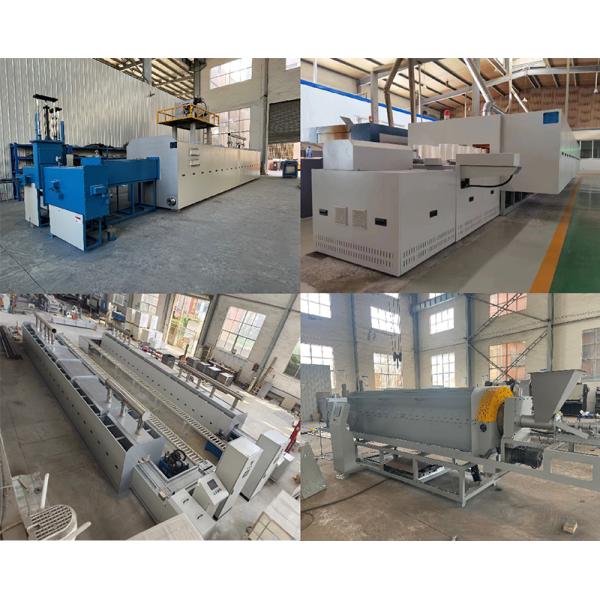

Production Workshop:
Related Products:
Customer Visits:
Offline Exhibitions:
Company Introduction:
FAQ:
Q: What advantages do you have?
1)There are five business segments: Engineering Design Center,Engineering Technology Center,Research and Development Center,Equipment Manufacturing Center, and International and Domestic Business Center;
2)The engineering design center processes design qualifications and the research and development center has complete testing and experimental equipment, which can undertake major national and provincial scientific and technological research tasks;
Q: What services do you offer?
1)We can provide engineering projects,equipment manufacturing customization
services,customized products according to customer needs.Medium scale tests can be carried out according to customer materials.
2)Provide exclusive and unique solution according to our experience;
Provide customized design according to our customers' requirements;
Provide all the detailed news and pictures from order to delivery;
Provide the most reasonable logistics for customers to save every penny;
Offer relative export documents and original certificate if needed.
Q:How can I use this machine?
A: This machine is quite easy to use, we will send you operation video and there is professional staffs guide you to operate.
Q: What's the MOQ?
A: For standard models without customized logo, MOQ can be at 1set for machine. Pls contact us for details we will try to meet your requirement.
Q:Can we use our own logo and design?
A:Yes, you can. We can provide OEM/ODM, service.
Q:What is your after-sales service like?
A:Train how to install the machine, train how to use the machine.Our engineers available to service machinery overseas.
